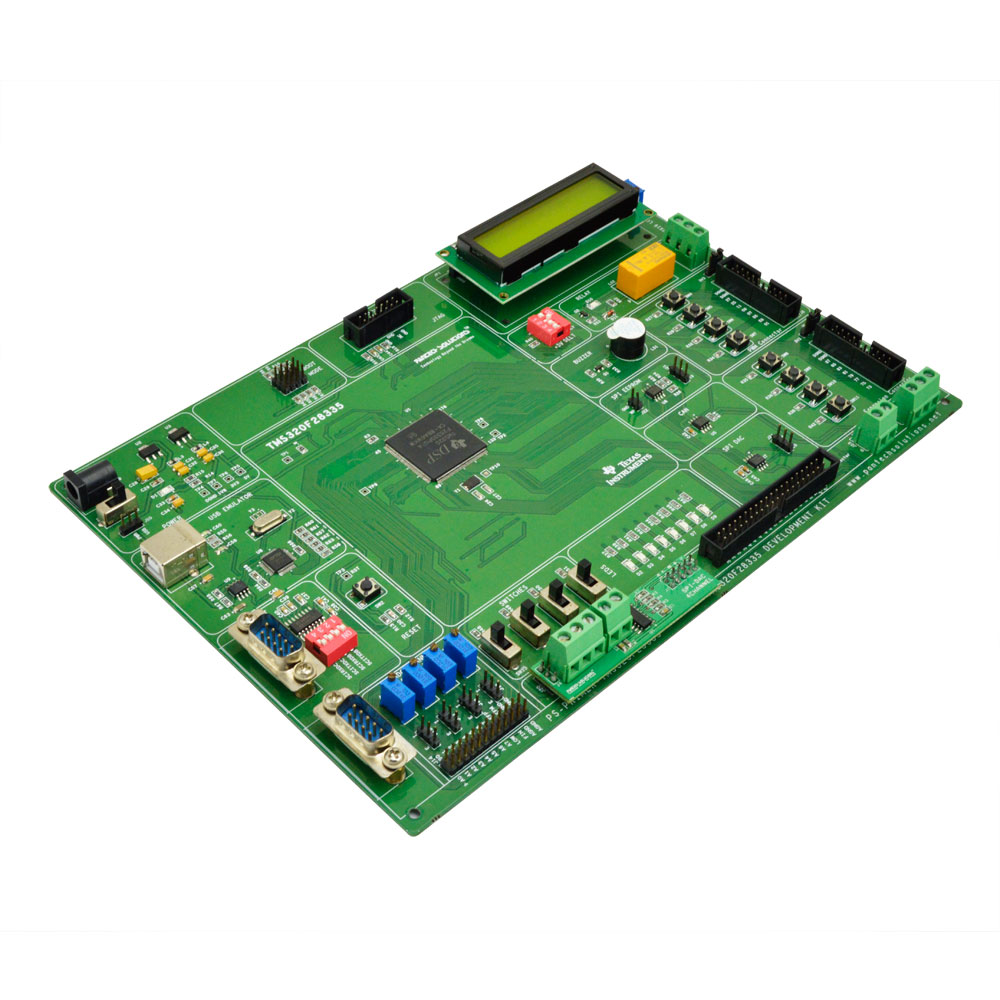

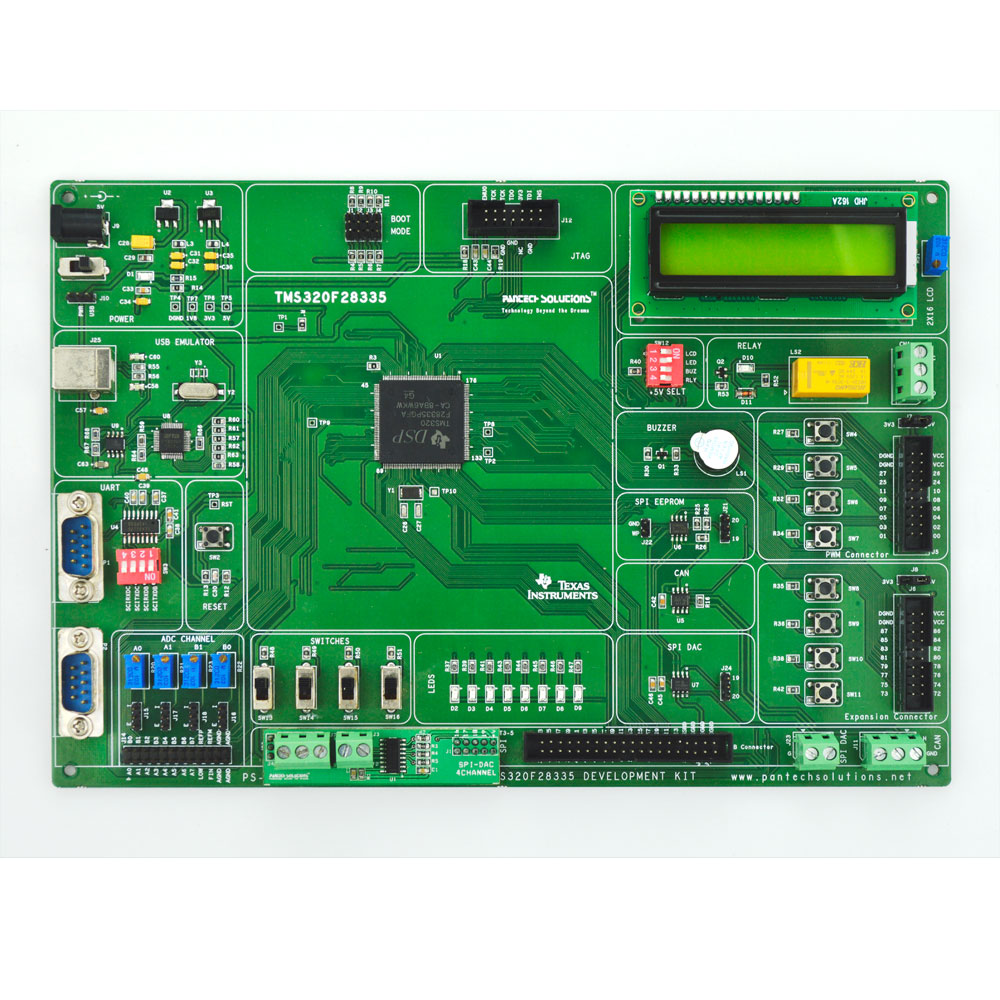

Evaluation board
- On Board XDS100 USB Emulator.
- Flash Memory Up to 128K x 16 Flash.
- ROM Memory Up to 128K x 16 ROM.
- 16 x 16 and 32 x 32 MAC Operations.
- 150 MHz (6.67-ns Cycle Time).
- 1K x 16 Each SARAM.
- 25MHz on board crystal.
- Motor Control Peripherals terminated in connector.
- On chip 12-Bit ADC, 16 Channels.
- On board USB-UART with line driver.
- SCIA or SCIB can configure single USB-UART.
- 2 Digital LED Output.
- 1 Digital Input (Push Switch).
- 8 Analog Inputs pins terminated in connector.
- Multiple Booting Option Connectors.
- Onboard IEEE 1149.1 JTAG emulation connector
