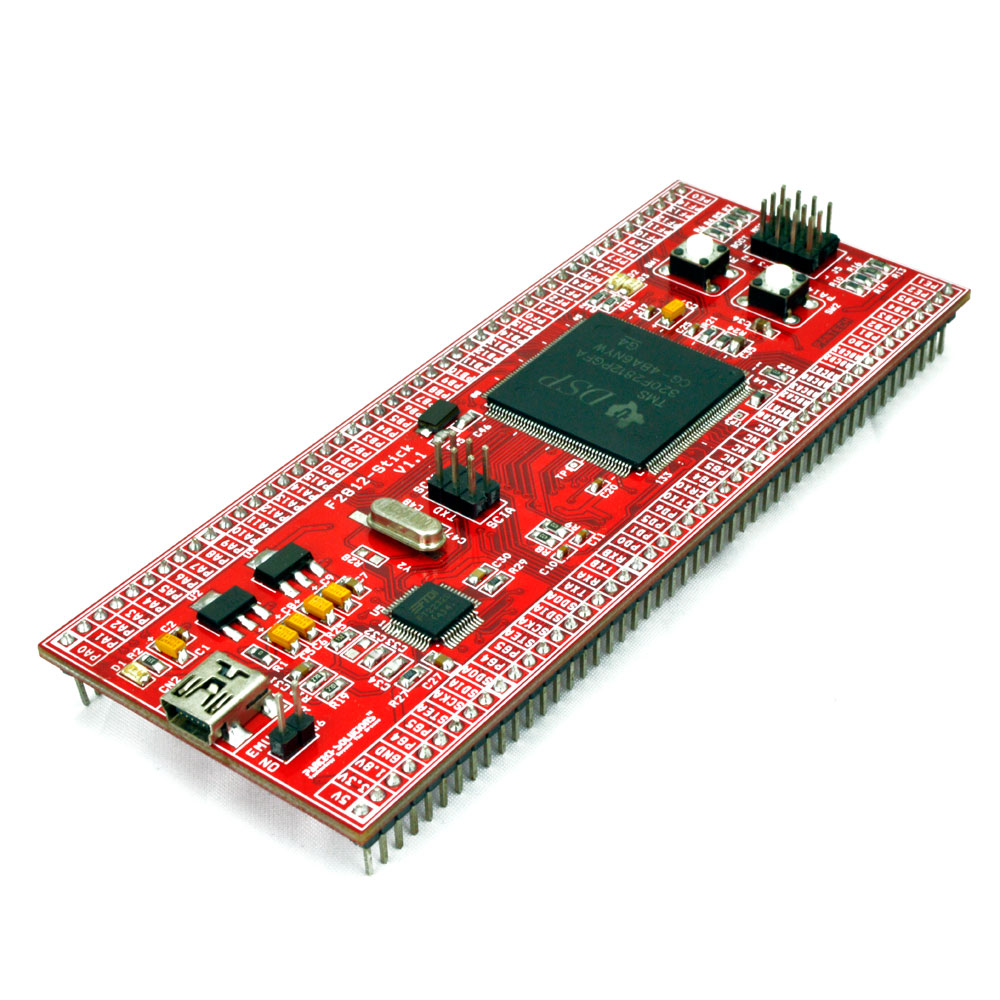

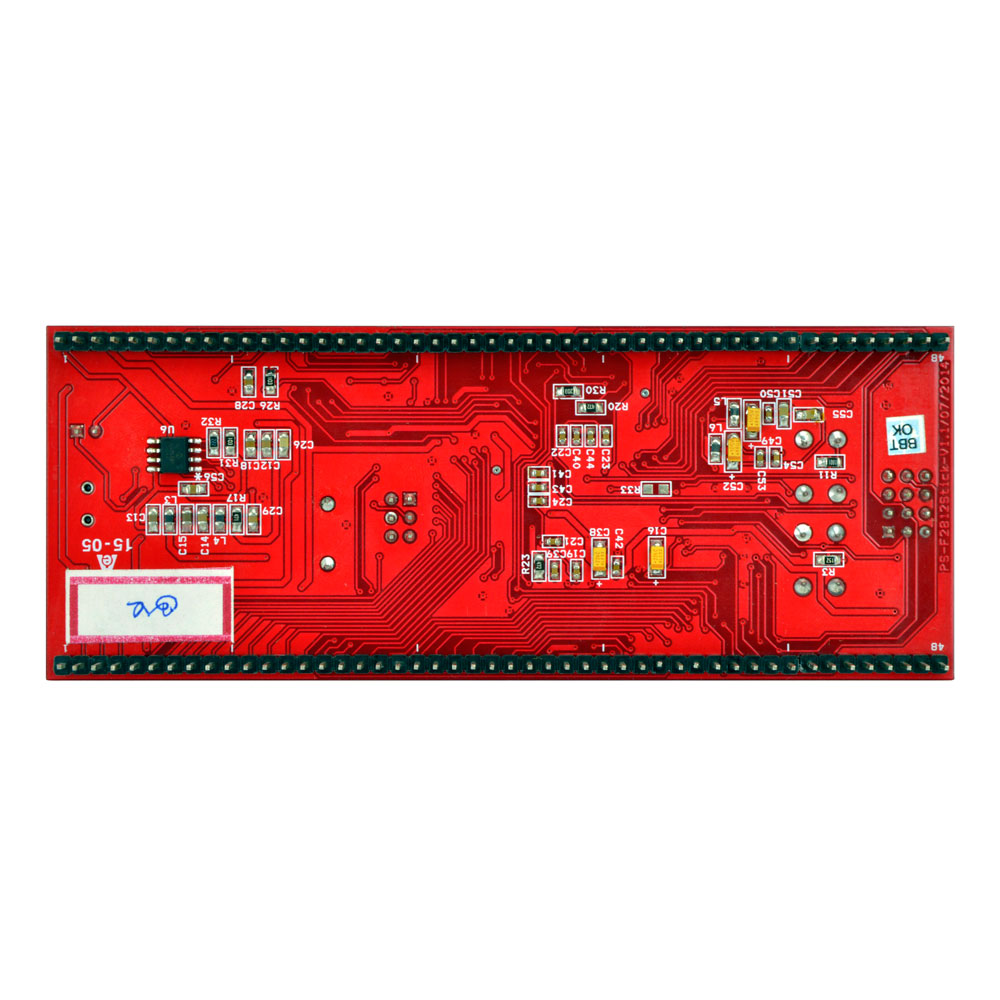

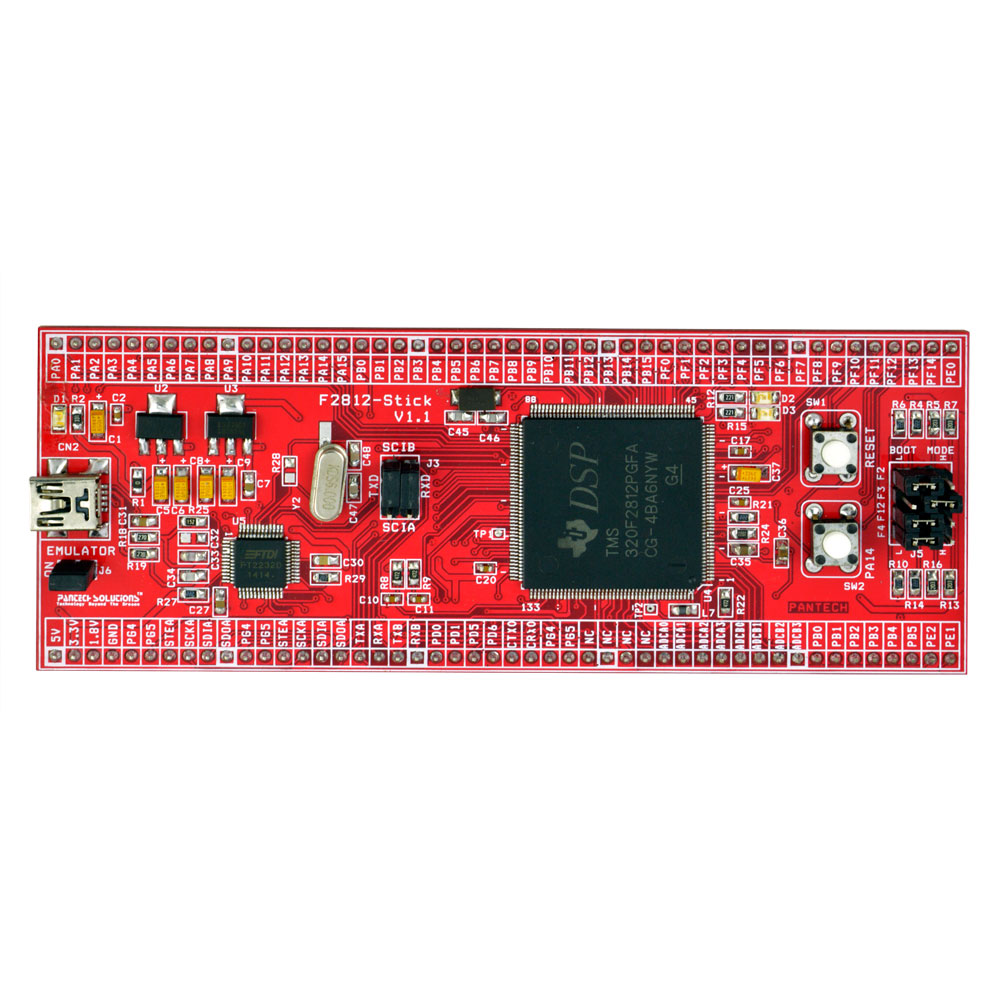

TMS320F2812 DSP starter kit
he TMS320F2812 device, a member of the TMS320F28x, DSP generation, is highly integrated, high-performance solution for demanding control applications and is the first 32-bit 150 MIPS DSP with on-chip flash memory and on-chip high-precision analog peripherals. It has an onboard XDS100 emulator.
Shipping : 4 to 5 days from the date of purchase
Warranty : 1 year
Specifications of TMS320F28335
Kit Includes:
MCU
- Texas Instrument TMS320, TMS320F28335 ( 32 Bit CPU )
Memory
- Flash Devices: Up to 256K x 16 Flash bull
- SARAM Devices: Up to 34K x 16 Flash
- BOOT ROM: 8K x 16 ROM
- One Time Programmable Device: 1K x 16 OTP ROM
Clock
- 20MHz crystal
On-Board
- PeripheralsOn Board XDS100 USB Emulator V1
- 8 Nos. LEDs
- 4 Nos. Digital Input(Slide Switch)
- 8 Push Switch
- 2×16 Character LCD with back Light
- 4 Nos. Analog Input (Potentiometer)
- 256k SPI EEPROM
- 12 bit SPI DAC
- CAN Interface to study
- 1 Nos. of SPDT Relay
- 3 UART(RS232) interface
- 2 Serial port connector termination
- Buzzer (Alarm)
- 4 Channel 12 bit SPI DAC(Optional)
- Boot Mode Options
Power
- 5V DC- Adaptor,
- Power from USB (+5V) (+3.3V, 800mA)
Connectors
- 1 Nos. 40 Pin GPIO connector
- 1 Nos.20 Pin PWM Connectors
- 1 Nos.20 Pin Expansion Connectors
- External SPI Connectors
- JTAG (Programming/ Debugging)
- 2 Nos.RS232 Connector (Serial Port)
- External Analog Input Connector
- External
- Relay Input Connector
- Power Connector
- USB Connector
- SPI DAC Connector
- CAN Connector
- TMS320F28335 Kit
- USB CABLE
- Serial Port Cable
- 5V Adapter
- DVD contains
- Software (Programmers, IDE) & Example Programs
| Weight | 3.000000 kg |
|---|
