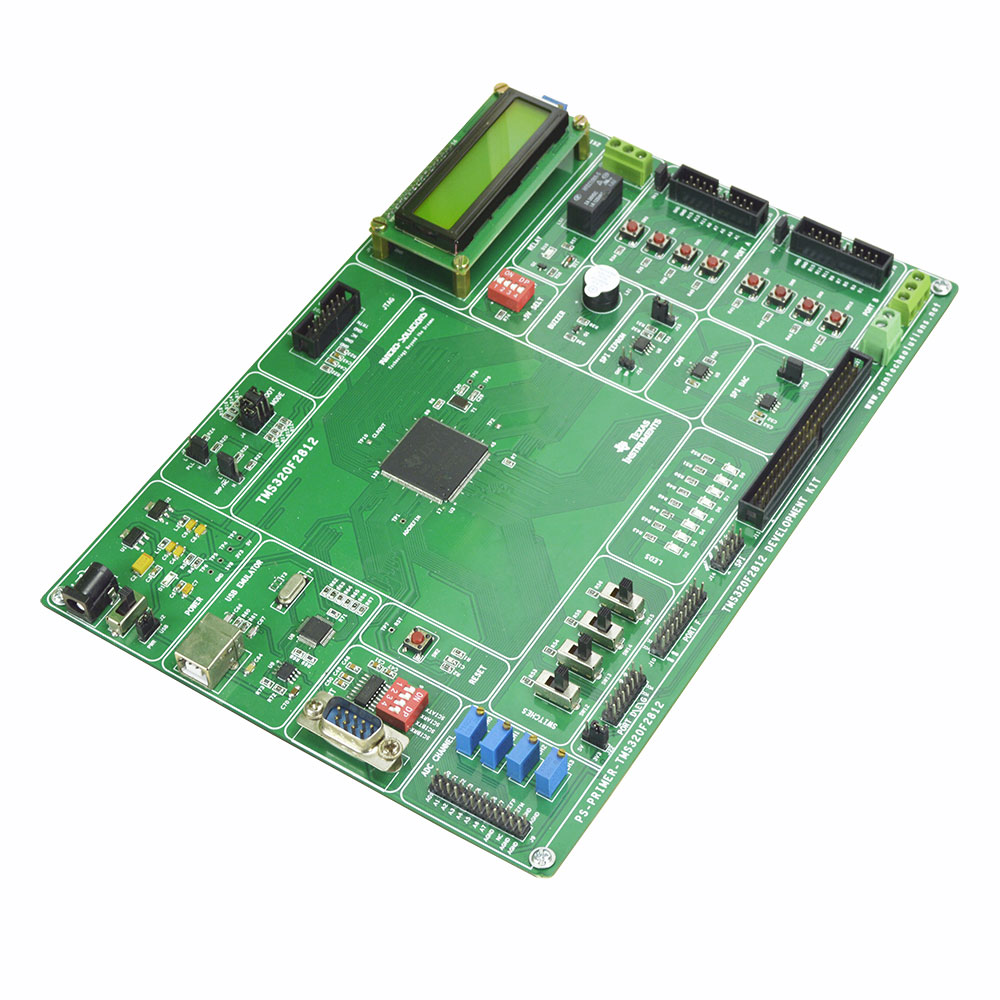

Features of TMS320F2812 DSP Development Board
- On Board XDS100 USB Emulator.
- Flash Memory Up to 128K x 16 Flash.
- ROM Memory Up to 128K x 16 ROM.
- 16 x 16 and 32 x 32 MAC Operations.
- 150 MHz (6.67-ns Cycle Time).
- 1K x 16 Each SARAM.
- 25MHz on board crystal.
- Motor Control Peripherals.
- 12-Bit ADC, 16 Channels.
- On board RS-232 connector with line driver.
- SCIA or SCIB can configure single UART.
- 8 Digital LED Output.
- 8 Digital Inputs (Push Switch).
- 4 Digital Inputs (Slide Switch).
- 4 Analog Inputs (Trimpot).
- 16×2 Numeric LCD.
- 1 Buzzer.
- 1 Relay.
- 12 bit SPI DAC.
- 4K SPI EEPROM.
- CAN interface.
- Multiple Booting Option Connectors.
- Onboard IEEE 1149.1 JTAG emulation connector.
TEXAS – TMS320F2812
- Flash Devices: Up to 128K x 16 Flash (Four 8K x 16 and Six 16K x 16 Sectors)
- ROM Devices: Up to 128K x 16 ROM
- 1K x 16 OTP ROM
- L0 and L1: 2 Blocks of 4K x 16 Each Single-Access RAM (SARAM)
- H0: 1 Block of 8K x 16 SARAM
- M0 and M1: 2 Blocks of 1K x 16 Each SARAM
