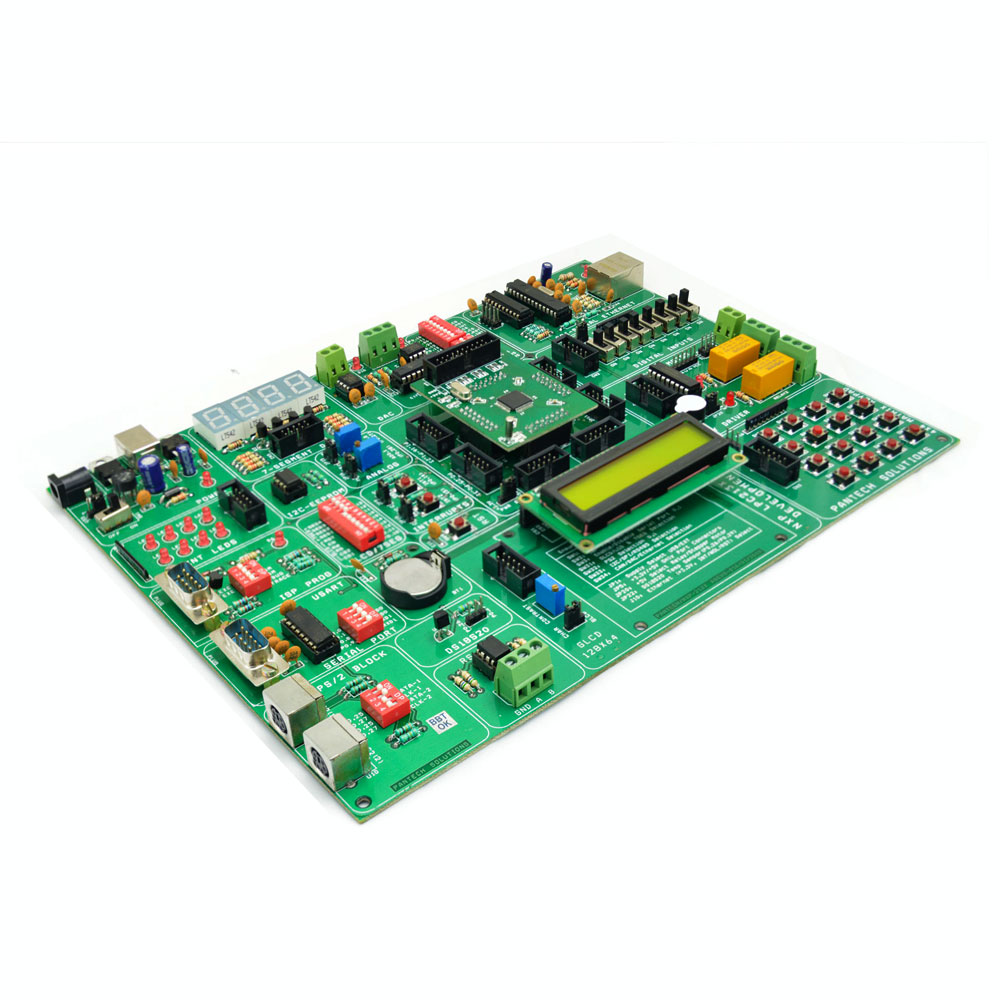

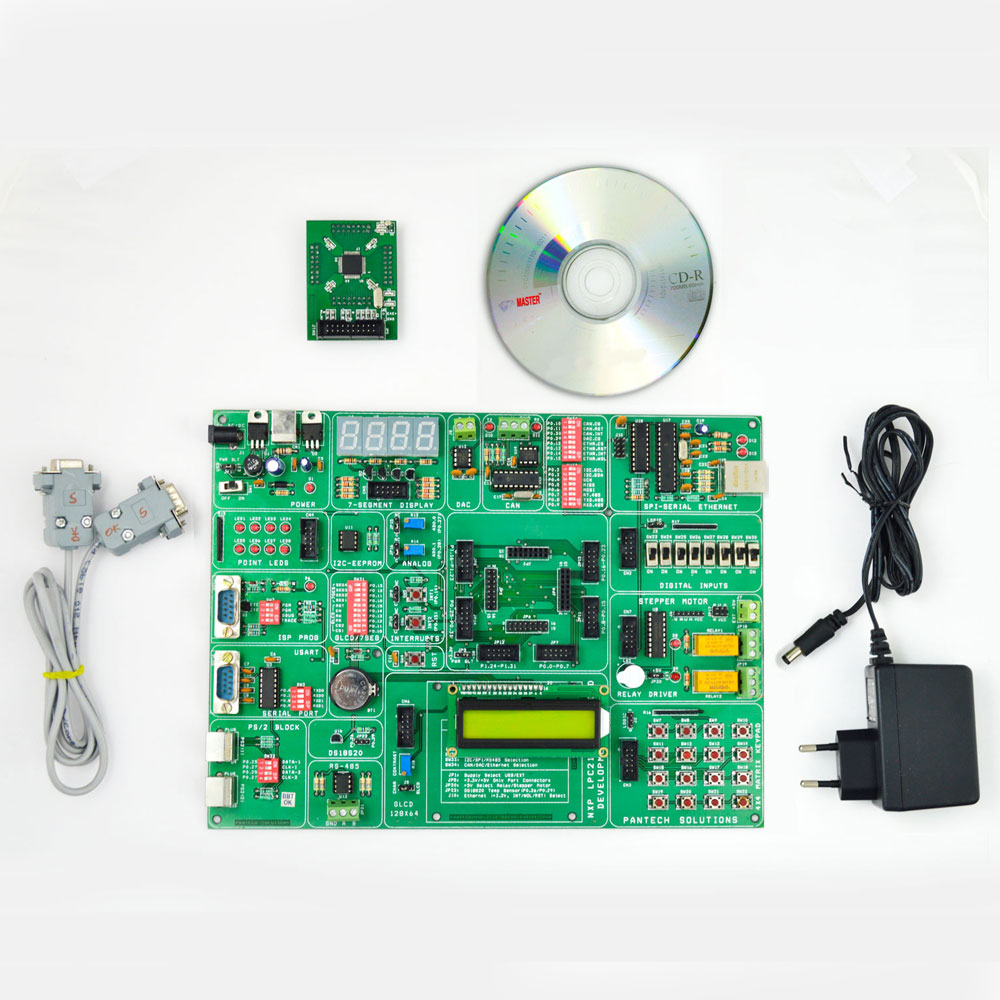

Key Features
- Serial Ethernet
- CAN 2.0
- SPI Digital-Analog Convertor
- 8 No’s of Point LEDs (Logic Output)
- 8 No’s of Slide Switches (Digital Input)
- 4×4 Matrix Keypad
- 2X16 Character LCD (Background Light)
- 4 No’s of 7-Segment Display (I2C Enabled)
- 2 No’s of Analog Input (Potentiometer)
- Temperature Sensor(LM35)
- Stepper Motor Interface
- 2 No’s of SPDT Relay
- DS1307 RTC with Battery-Backup
- 2 No’s of UART(RS232)
- Virtual Port
- Buzzer (Alarm), Digital / Analog Output
- Interrupts Study, Reset Button
- Serial EEPROM (I2C Devices)
- 128×64 Graphical LCD
- PS/2 | RS-485
- 10-Pin Port Expansion Connector
- JTAG Header (Program/Debug) | ISP Programmer
Communication Protocols
- SPI , I2C , 1-Wire , RS-485 , CAN2.0 , RS-232
