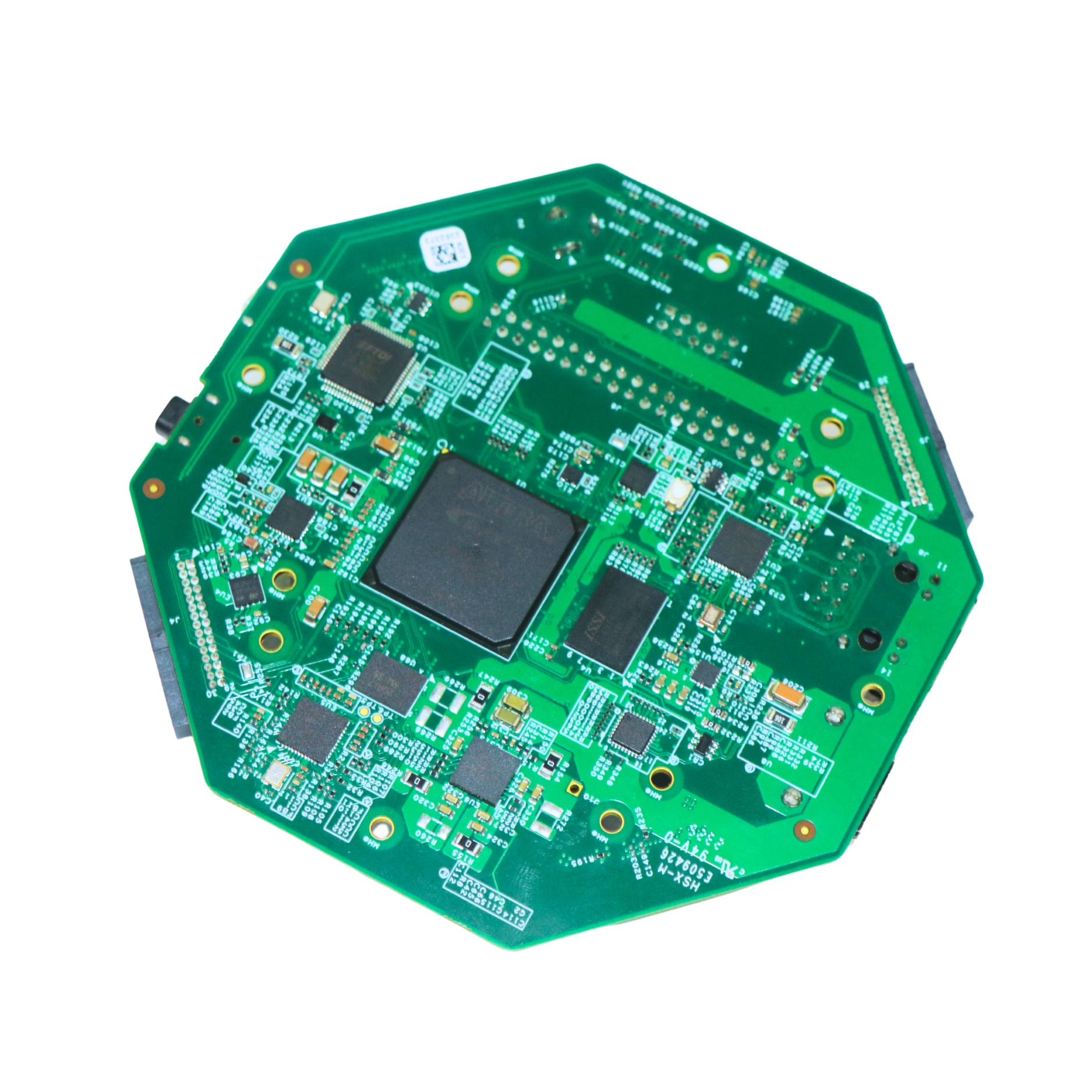

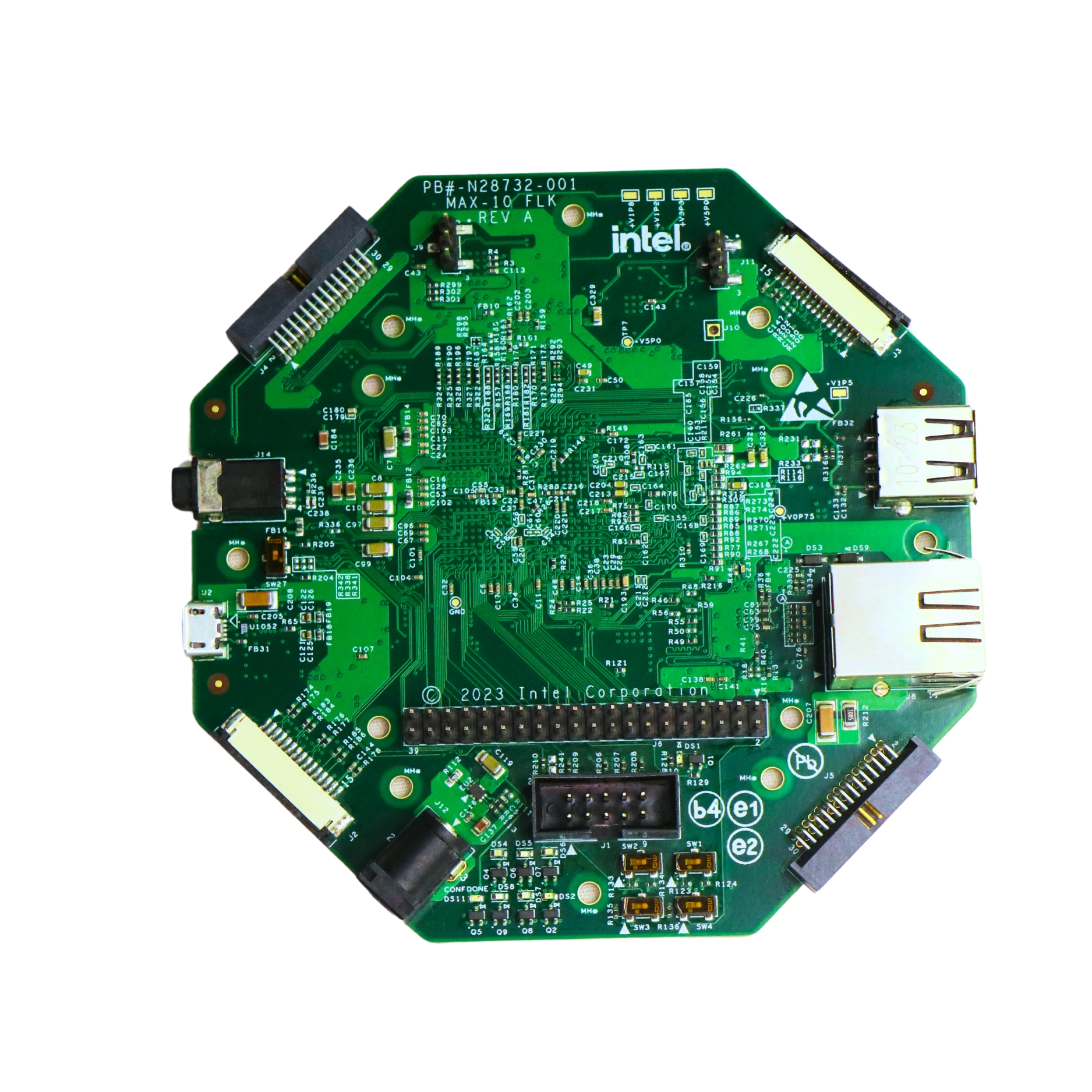

MAX10 FLK DEV Board

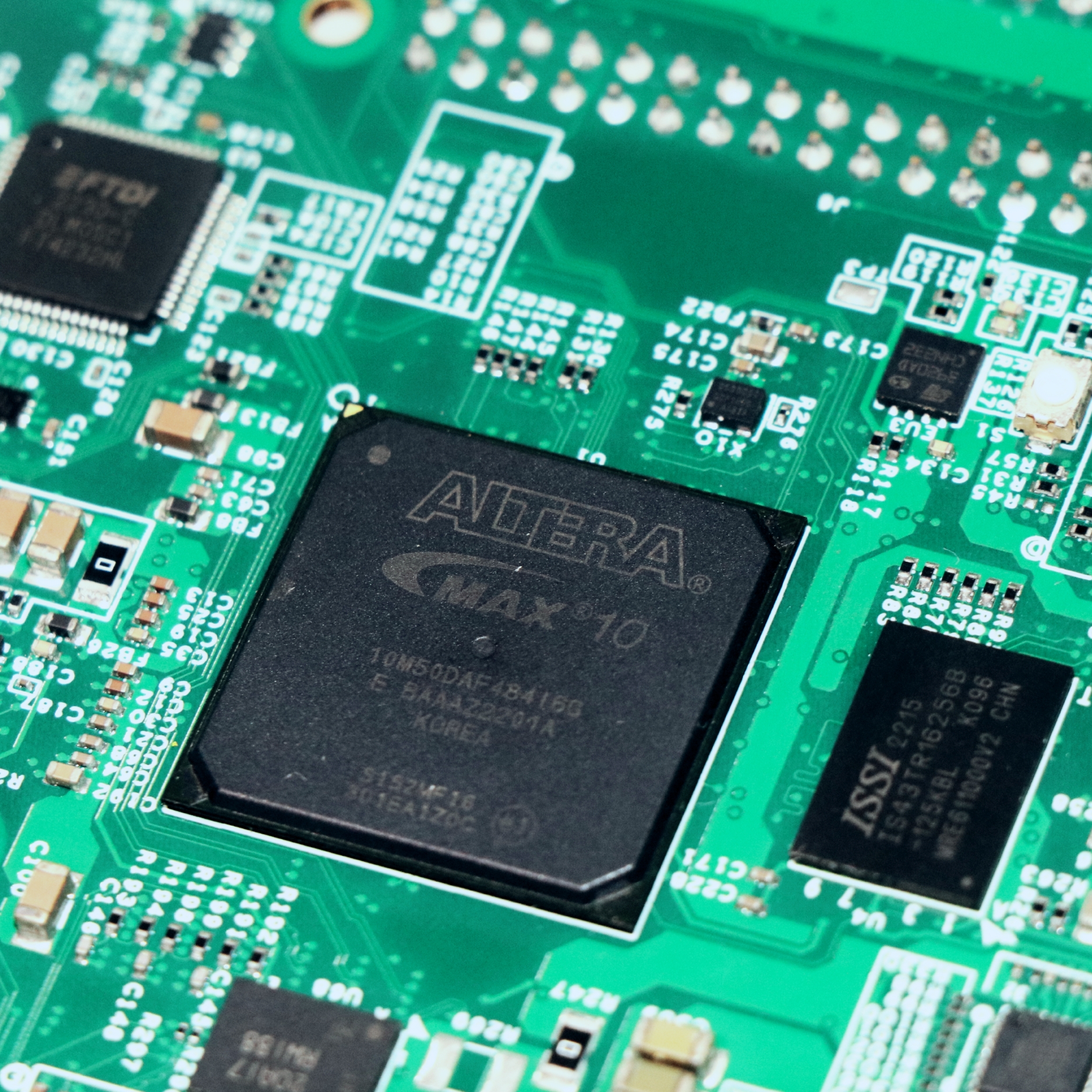

Powered by Intel MAX10 FPGA (10M50DAF484C7G)
This board features an ALTERA MAX10 FPGA with 50K Logic Elements, 144 DSP multipliers, and integrated ADCs & Flash, making it perfect for real-time, DSP-intensive applications. the MAX10 seriescombines high performance with low power.

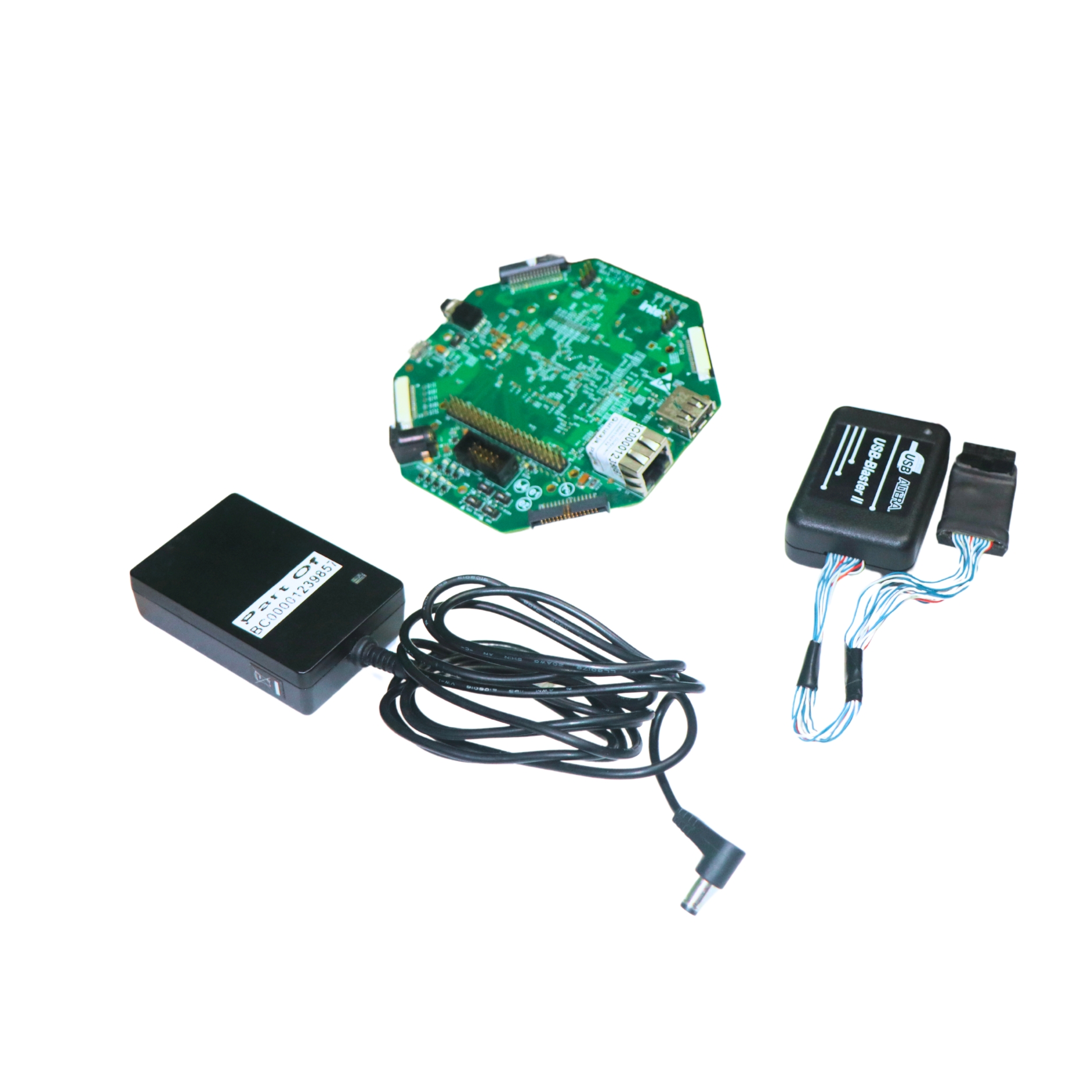

Kit Includes:
- Power supply – 5v

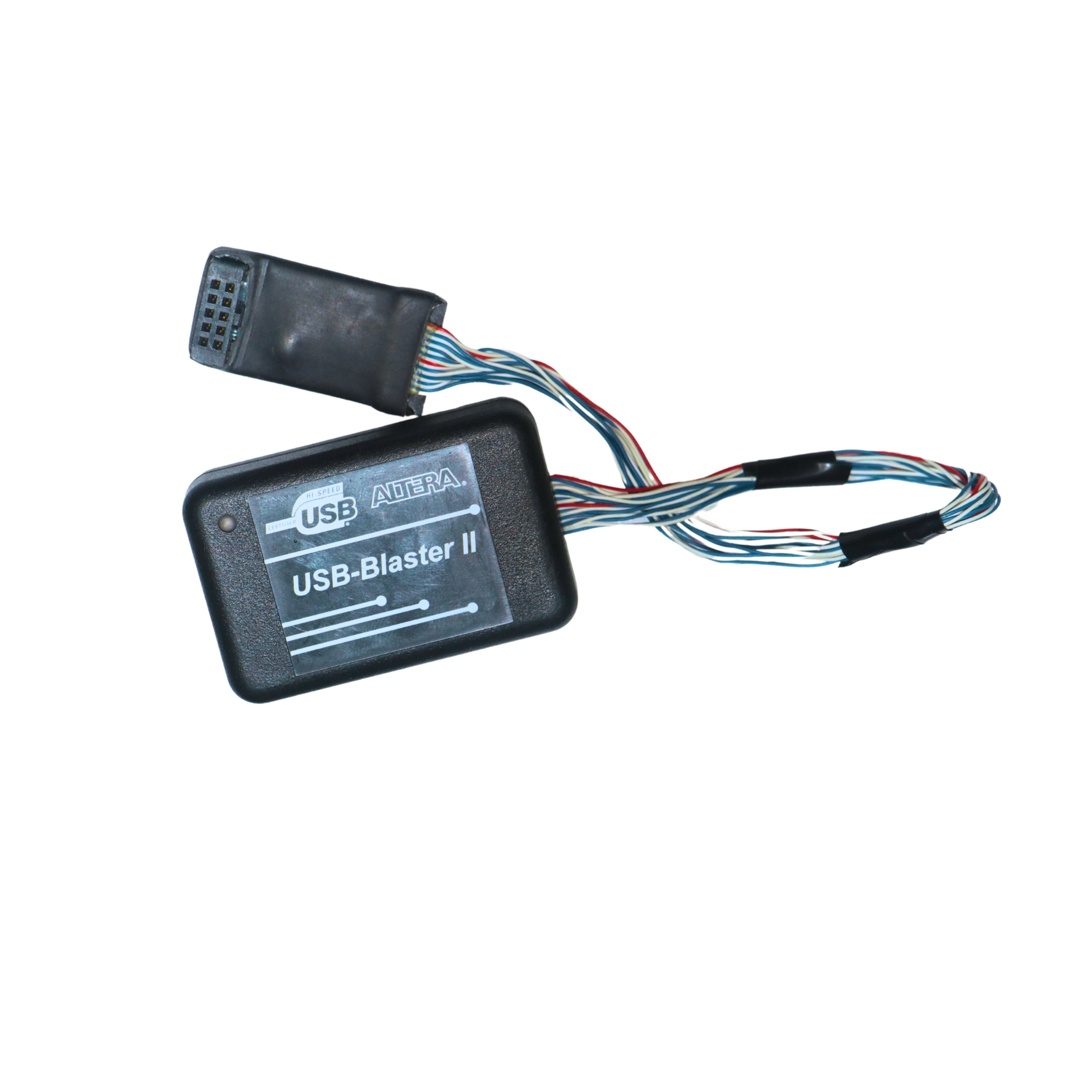

- 2. JTAG USB blaster II

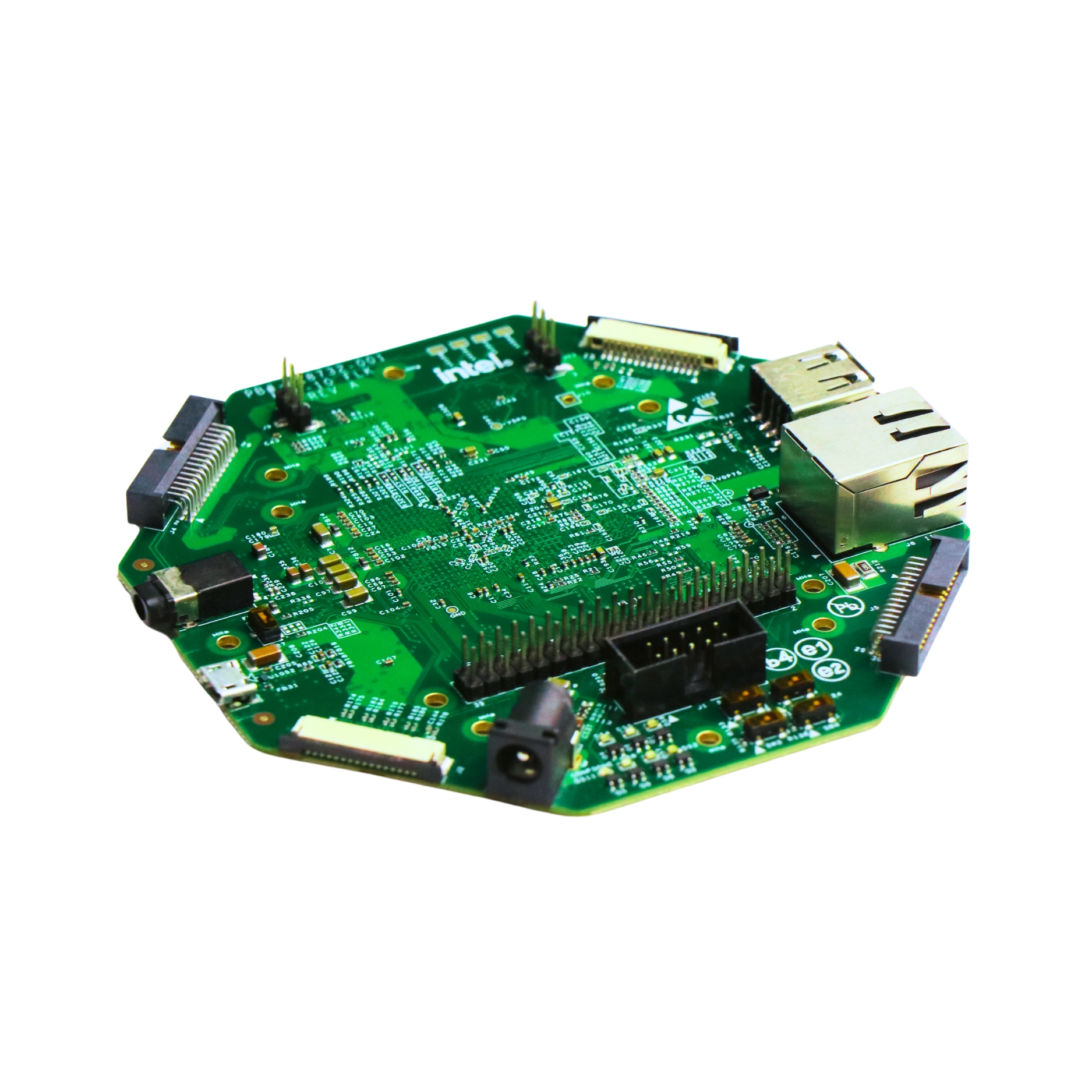

This compact embedded system packs a powerful punch with its Intel MAX10 FPGA, offering 50K logic elements, embedded memory, and 144 DSP blocks for efficient real-time processing. It supports AI at the edge, IoT applications, and embedded vision, making it ideal for advanced computing needs. With onboard DDR3 SDRAM, Quad SPI NOR Flash, and MIPI interfaces for camera and display connectivity, it excels in multimedia and imaging tasks. The board features a 10/100/1000 Mbps Ethernet interface, USB support, and Raspberry Pi-compatible GPIO expansion, ensuring seamless integration with various peripherals. Dual configuration image support and onboard oscillators provide robust system reliability. Designed for education, DSP projects, and AI-driven applications, this compact yet powerful solution is ready to tackle demanding workloads.
Here are the specifications for the embedded system:
- Package: 484-pin FBGA (F484)
- Logic Elements (LEs): 50,000
- Embedded Memory: 204 KB (1,638 Kbits of M9K memory blocks)
- User Flash: 736 KB (5,888 Kbits)
- DSP Blocks: 144 × 18×18 multipliers
- Analog-to-Digital: Intel MAX10 10M50DAF484C7G (50K LEs, 144 multipliers, dual ADCs)
- External DDR3 Memory:
- 512 MB DDR3 SDRAM (IS43TR16256B-125KBL, 16-bit, DDR3-1600)
- 128 MB Quad SPI NOR Flash
- Camera Interface: MIPI CSI input connector (for MIPI cameras)
- Display Interface: MIPI DSI output connector (for MIPI displays)
- Audio Interface: Onboard Audio Codec (Stereo input/output)
- Ethernet: 10/100/1000 Mbps Ethernet Interface
- USB Interfaces: USB Mini-B (JTAG/Serial/Power), USB Type-A Host/Device
- GPIO Expansion: 40-pin Raspberry Pi-compatible header
- Clock Sources: Onboard oscillators for system and DDR clocks
- Configuration: Dual Configuration Image Support via Internal Flash
- Power Supply: 5V input via USB or DC Jack
- Form Factor: Compact custom board (mounting holes included)
- Use Cases: Embedded vision, DSP, real-time processing, AI at the edge, IoT, and education
Let me know if you want me to refine the description for a specific audience or application!
- 8 Nos. Point LEDs (Logic Output)
- 8 Nos. Digital Input (Slide Switches)
- 4×4 Matrix Keypad
- 2X16 Character LCD (Background Light)
- 2 Nos. 7-Segment Display
- Stepper Motor Interface
- RTC with Batter-Backup
- UART(RS232)
- USB(Power Supply Only)
- Buzzer (Alarm)
- Humidity
- Ultrasonic
- LM35 Temperature
- Arduino
🧠 512MB DDR3 + 128MB QSPI - Flash High-speed memory combo enables smooth AI inference, video buffering, and real-time data processing.
🎥 Rich Multimedia Support - Onboard MIPI CSI (camera input) and MIPI DSI (display output) make it ideal for embedded vision projects.
🌐 Flexible I/O and Connectivity -Features Ethernet, USB, Audio Codec, and Raspberry Pi-compatible GPIO header for seamless integration.
🛠️ Perfect for Rapid Prototyping & Edge AI - A compact, all-in-one platform for automation, AI/ML, DSP, and FPGA education.
