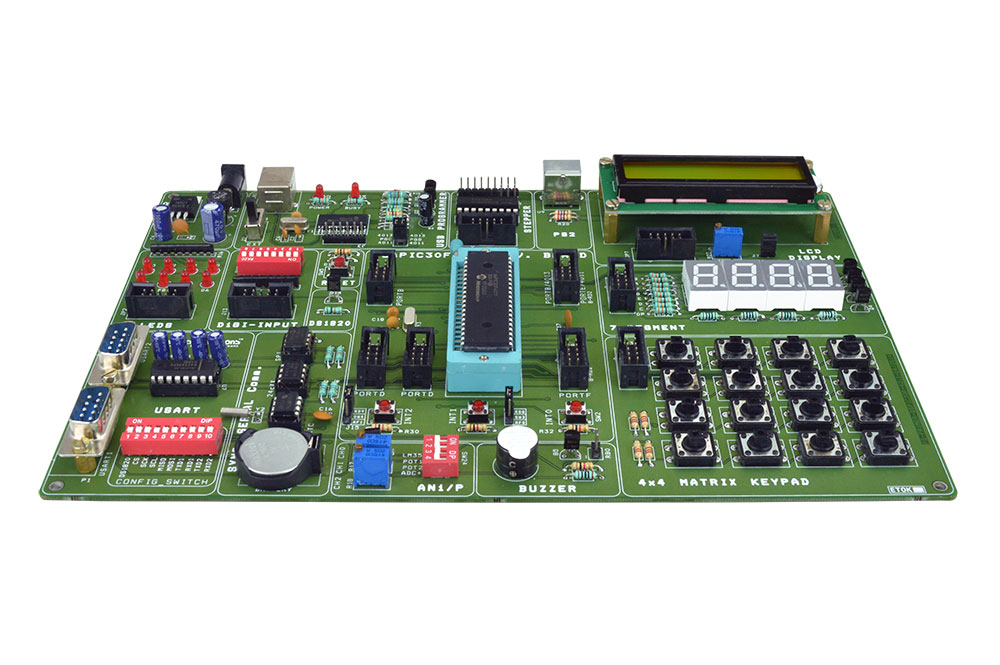

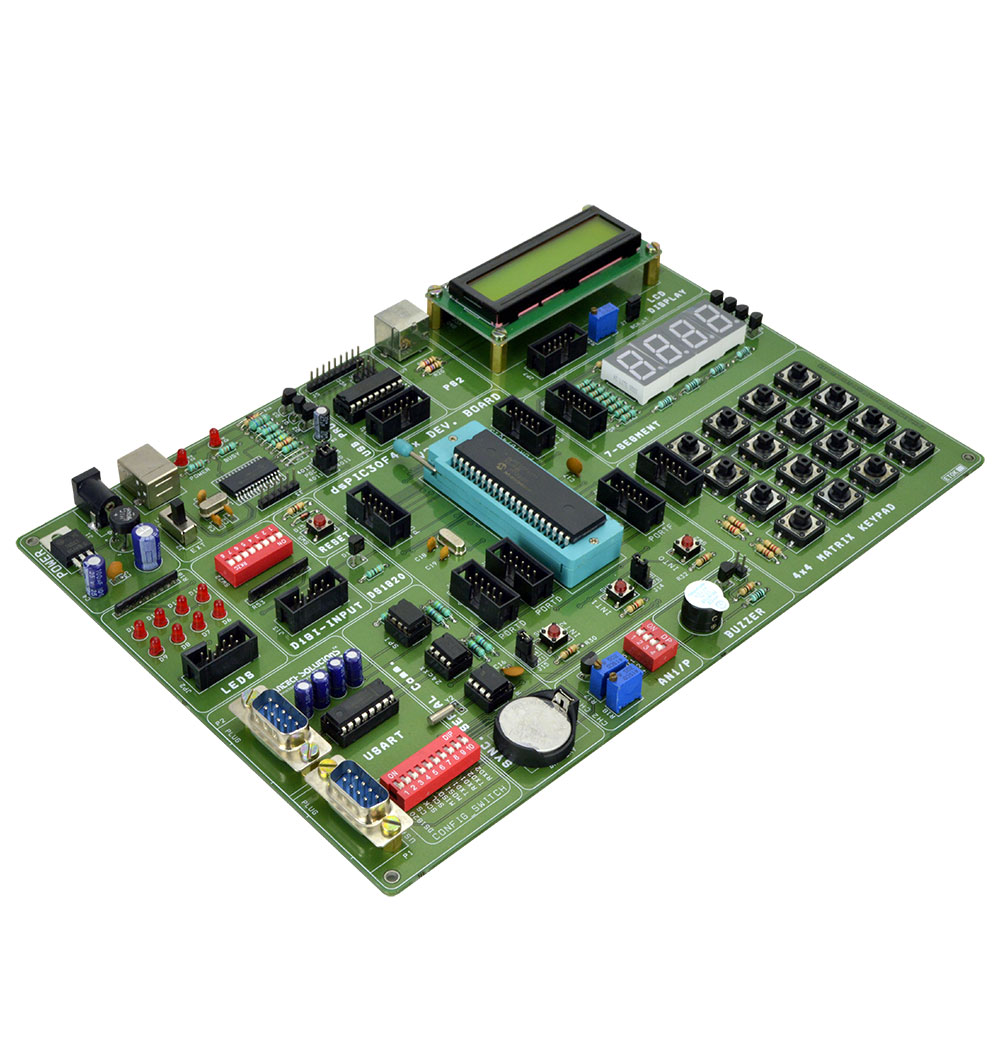

dSPIC Development board
dsPIC Development board is proposed to smooth the progress of developing and debugging of various designs encompassing Microcontrollers from Microchip. It’s designed as to facilitate (dsPIC30F 40PIN DIP) On-board Programmer for PIC Microcontroller through ISP on Universal Serial port. It integrates on board USART,LEDs, keypads, 3 ADC inputs and LCD Display to create a stand-alone versatile test platform. User can easily engage in development in this platform, or use it as reference to application development.
Shipping : 4 to 5 days from the date of purchase
Warranty : 3 Months
Key Features of dspic development board
- 40pin-SIF Socket
- 8 Nos. Point LEDs (Logic Output)
- 8 Nos. Digital Input (DIP Switch)
- 4×4 Matrix Keypad
- 2X16 Character LCD (Background Light)
- 4 Nos. 7-Segment Display
- 2 Nos. Analog Input (Potentiometer)
- Temperature Sensor (LM35)
- Stepper Motor Interface
- DS1307 RTC with Battery-Backup
- USART(RS232)
- USB 2.0 Enabled Programmer
- Interrupts Study, Reset Button
- Serial EEPROM (I2C Devices)
- Digital Temperature Sensor(DS18S20)
- 5×10-Pin Expansion Connector
- Piezo Electric Buzzer
- CAN and PS2 interface Connector

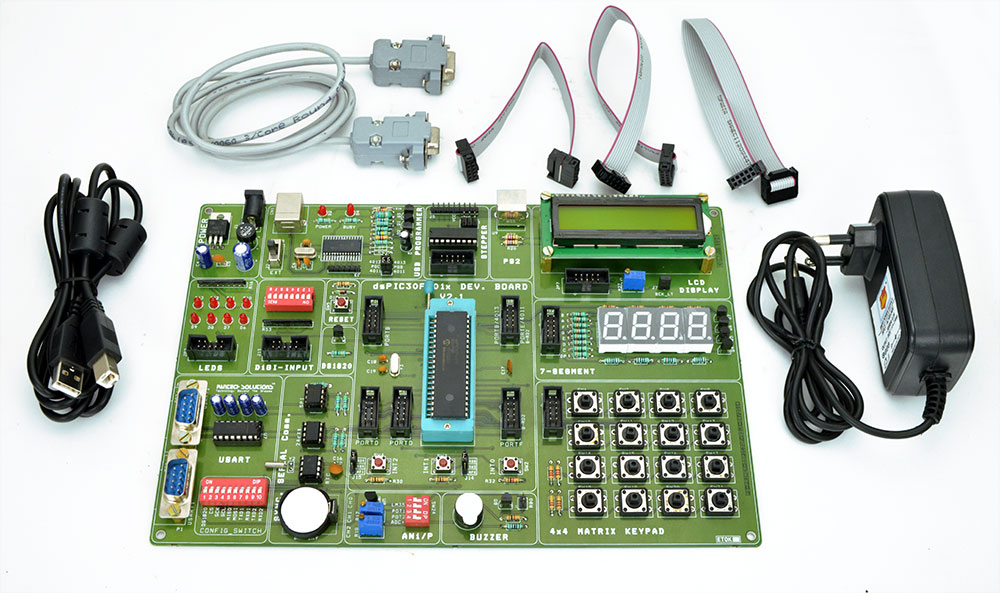

Kit Includes
- dsPIC30F Development Kit
- Power Adaptor
- RS232 Cable, USB Cable
- User Guide HW/SW
- CD Contains:
- Examples.
- ISP Programmer.
- IDE.
- Datasheets
- Evaluate Real Time Applications
- Supports Embedded C, ASM
- ISP Programming | SPI | I2C Communications
- Facility to interface external devices
MCU
- Devices :
- dsPIC30F4011,12,13, dsPIC30F3014
- Devices compatible with dsPIC30F3014 Memory : 8K-32K FLASH – Program
- Clock : 10MHz crystal, Max = 80 MHz
