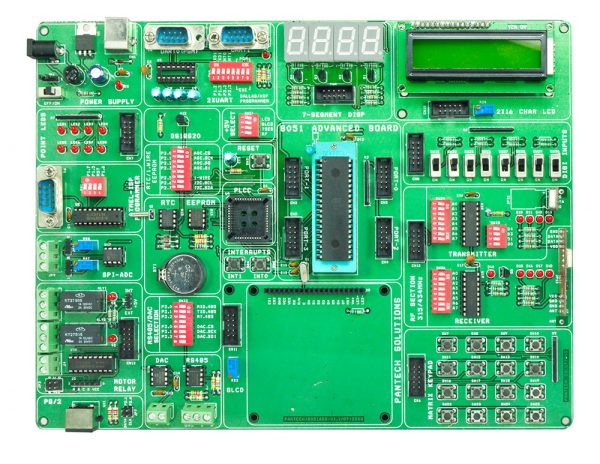

Key Features of 8051 Advanced Development Board
- 40pin-ZIF Socket and 44-pin PLCC Socket
- 8 No’s of Point LED’s as Logic Output
- 8 No’s of Slide Switches as Digital Input
- 4×4 Matrix Keypad
- 2X16 Character LCD (Background Light)
- 4 No’s of 7-Segment Display
- SPI ADC with Analog Input Test (Potentiometer)
- Stepper Motor Interface
- 2 No’s of SPDT Relay
- DS1307 RTC with Battery-Backup
- 2 No’s of UART(RS232)
- Buzzer (Alarm), Interrupts Study, Reset Button
- SPI – Digital / Analog Output
- Serial EEPROM (I2C Devices)
- 128×64 Graphical LCD
- Digital Temperature Sensor(DS18S20)
- ISP Programmer | PS/2
- RF433.92 MHz Transmitter/Receiver
Study of Communication Protocols
- SPI
- I2C
- 1-Wire
- RS-485
- RS-232
- RF (433 Mhz)
